Sunbeam Alpine Series 5 Sports Car

Sunbeam Alpine Series 5

from Classic to Modern

The Sunbeam Alpine Series 4 sports car had, by 1965, finally been brought up to date courtesy of:

Rear tail fins had been reduced in size
A single bar radiator grille had been introduced
Bumper over riders were now rubber tipped
The convertible had a vinyl covered dashboard facia
Automatic transmission was available as an optional extra

However, after a twenty month production run in which 12,406 units had been built, the Series 4 was replaced, in September 1965, by the Series 5 sports car which would, ultimately, be the final model produced.

The most important change in the new version was in terms of the engine, whose capacity was now increased to 1725 cc by increasing the length of the stroke.

Furthermore, the original three bearing crankshaft was finally replaced with a five bearing unit, which made it not only sturdier, but smoother running, especially at higher revs.

The single twin choke Solex carburettor was now replaced with two Stromberg 150CD carburettors which, together with the increased capacity, produced 92.5 bhp at 5500 rpm and 110 ft/lbs of torque at 3700 rpm.

Other improvements included:

An oil cooler was standard equipment
Rear drum brakes were now self adjusting
Exhaust manifold was of a tubular construction
Electrical system was changed to a negative earth
The name "Sunbeam" was removed from the front of the car
The metal boot which held the folding soft top was replaced by a snap on vinyl bag
Internal air circulation was increased by the addition of vents situated in the footwells
Dynamo was replaced by an alternator
The automatic transmission option was withdrawn

By the time production ended in January 1968, a total of 19,122 Series 5 Alpines had been built.

Alpine Alpine MGB
Technical Data Series 5 Series 4 Mark 2
Production: 1965-1968 1964-1965 1967-1971
Output 19,122 12,406 123,978
Engine cc 1725 1592 1799
Cylinders, bhp 4, 92 4, 82 4, 91
Top Speed mph 102 100 104
0-60 mph, secs 13.0 13.5 11.2
Fuel consumption 27 26 28
(overall)

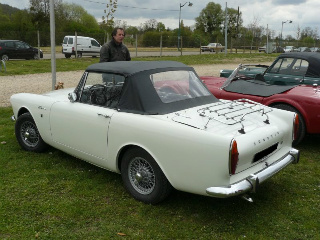

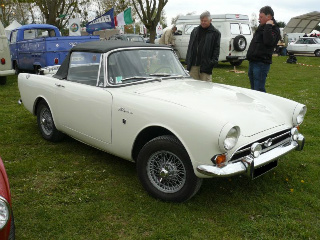

1967 Sunbeam Alpine Series 5

1967 Sunbeam Alpine Series 5

Alpine Series 5

Full Screen Full Screen

However, even with all these improvements and innovations, it was still no march for its main competitor, the MGB.

This was more than borne out by the fact that, in nine years of production, around 70,000 Alpine Series 1-5 were built, compared with nearly 525,000 MGB's produced during an eighteen year period.

Although the Alpine offered increasingly comfortable, open top motoring, the one thing it always fell short on was - performance.

Even as early as 1961, Rootes Group had been considering ways in which performance could be increased.

In fact, the Rootes development team had been given an unequivocal directive that any alternative engines had to fit with the minimum of alterations to the body.

Consequently, two frontrunners included an Alfa Romeo, 4-cylinder, 1600 cc engine, and the Daimler 2.5 litre V8 unit as used in the Daimler SP250 Dart.

However, in the end, neither engine was found to be suitable.

It is interesting to note that the racing driver Jack Brabham suggested using an American V8 engine which, initially, did not receive a favourable response from Rootes.

The Series 5 was exported almost exclusively to the US and, in essence, formed the basis for the introduction of the V8 Sunbeam Tiger.

Further, in late 1966, Chrysler completed their takeover of the Rootes Group.

Initially, they wanted their own V8 engine to replace the Ford unit that powered the Tiger at that time.

Unfortunately, this did not materialise, and so Chrysler stopped production of the Tiger and, ultimately, the Alpine as well.

Although the name Alpine was used on later cars, these bore no relationship to the classic sports cars built between 1959 and 1968.
